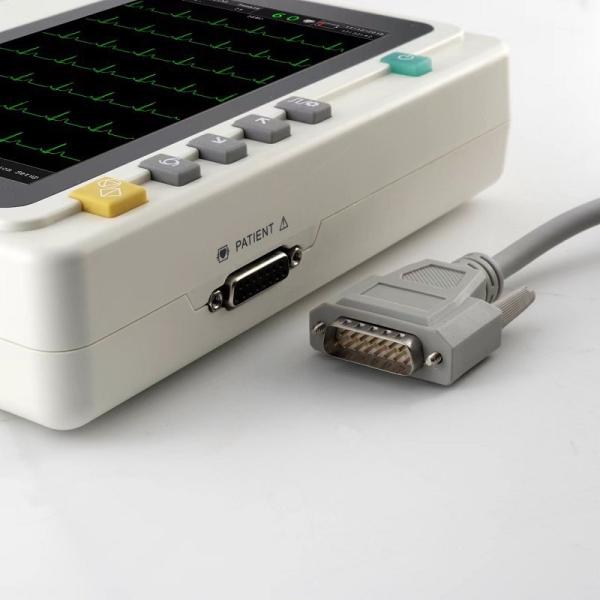

14.8V 12 Lead Portable ECG Device Equipment With 10.2 Touch Screen

Description:

Experience clinical-grade cardiac diagnostics with our state-of-the-art 12-Lead ECG Machine. Combining a compact, lightweight design with robust functionality, 12-Lead ECG Machine delivers crystal-clear 12-channel waveform acquisition, intelligent analysis, and versatile reporting – empowering accurate diagnoses in any clinical setting.

Core Performance & Usability:

• Full 12-Lead Simultaneous Acquisition: Captures and displays all 12 ECG channels in real-time on a single, full-screen 10.2" color touch-screen.

• Dual Operation: Intuitive touch-screen interface complemented by physical push-button controlsfor flexible workflow.

• Advanced Signal Processing: Integrated ADS, HUM, and EMG filters ensure artifact-free, high-fidelity tracings even in challenging environments

• Intelligent Automation:

  • Automatic Measurement & Calculation: Reduces manual effort.

  • Auto-Analysis & Auto-Diagnostic: Provides preliminary interpretations to enhance clinician efficiency.

  • Automatic Baseline Adjustment: Guarantees optimal waveform recording quality.

  • Waveform Freezing: Facilitates detailed review.

High-Resolution Printing & Data Management:

• Precision Thermal Printer:

  • 216mm Wide Paper.

  • High Resolution: 8 dots/mm thermal array.

  • Synchronization Printing.

  • 7 Selectable Trace Thickness Levels.

  • Automatic Alerts: Lead-off detection & paper-out detection.

• Comprehensive Data Handling:

  • Built-in Storage: Holds over 500 ECG reports with waveforms and annotations (lead sign, sensitivity, speed, filter state).

  • Expandable Storage: Supports USB flash drives & SD cards.

  • Seamless PC Integration: Review, save, and analyze reports via ECG playback software using standard RS232 & USB interfaces. Connect to ECG workstation software.

Power & Portability:

• Long-Lasting Power: 12-Lead ECG Machine built-in rechargeable Li-ion battery (14.8V / 4400mAh) supports extended mobile use.

• Universal Power: AC/DC conversion adapts to 100-240V, 50/60Hz AC supplies globally.

• Truly Portable: Lightweight, compact design with a convenient hidden carry handle.

• Energy Saving: Features a sleep mode to conserve battery and prolong LCD lifespan.

Specification:

14.8V portable ecg device

Touchscreen portable ecg device

14.8V 12 lead ecg equipment

14.8V 12 Lead Portable ECG Device Equipment With 10.2 Touch Screen Images
